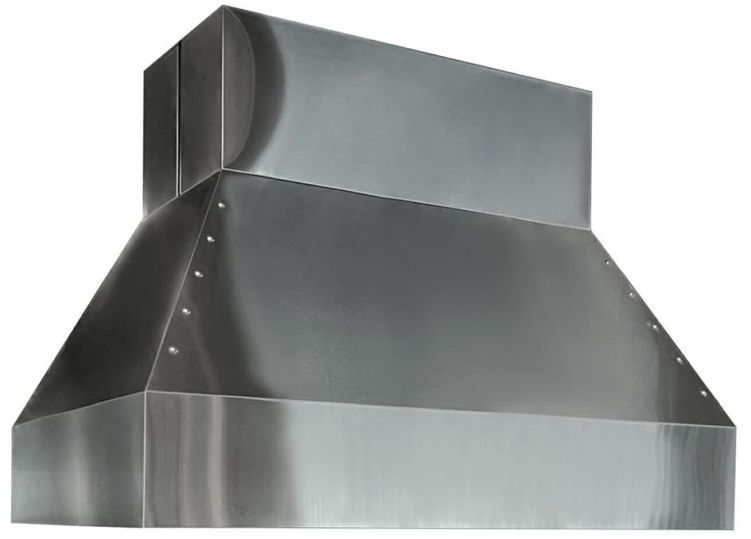

Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood

Trade-Wind

Model #:

P7248-12ISL

Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-0
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-1
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-2
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-3
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-4

At a Glance

Product Dimensions 24"h x 48"w x 32"d

Available in 48” width. Pyramid BBQ hoods are 16" deep at top, 32" deep at bottom. Design of the stainless steel commercial baffle filters adds a professional image. Telescopic duct cover (2 piece) provided for adjustment up to 10' ceilings. Generously proportioned 32” depth of hood provides an exceptional capture area.Read More

$6,409.00

What We Offer

Get to know this product.

Product Overview

Product Overview

Lighting

Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).

Enduring Quality

Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.

Quiet Operation

Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.

Built for Performance

Double bank of baffle filters allows for the largest active capture area in outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.

Ease of Use

Cool touch knarled knobs for easy control.

Installation

All 24” bodied hoods easily convert from vertical discharge to horizontal at job site

Useful Documents
Specification Sheet
Installation Instructions
Warranty
Specifications

General Specs

ColorStainless Steel
Color/Finish NameStainless Steel
Range Hood TypeIsland
Maximum CFM1200
Grease Filter TypeBaffle
Duct Size (in.)10
Fan Speed Options3
Sones Rating1.5 - 7
Range Hood FeaturesLight, Removable Grease Filter, Dishwasher Safe Filter
Outdoor ApprovedYes
Appliance Fit Width (in.)48
Width (in.)48
Depth (in.)32
Height (in.)24
Product Weight (lbs.)175
CollectionP7200 Series
SeriesP7200 Series
Manufacturer Warranty3 Year Parts & Labor
ADA CompliantNo
Voltage120
Frequency60
Amp6.3

Specifications

Models48" & 60" Width
Hood StylePyramid: 16″ deep at top, 32″ deep at bottom Generously proportioned 32” depth of hood provides an exceptional capture area
CFMPowerful internal blowers deliver 1200 CFM (on 48") and 2300 CFM (on 60")
MaterialHeavy gauge commercial stainless steel (#304 grade with #4 brush finish) Dimmable 50 watt halogen lights
FiltersFour 12” by 14” baffle filters for enhanced performance Design of the stainless steel commercial baffle filters adds a professional image
Duct Cover OptionsTelescopic duct cover (2 piece) provided for adjustment up to 10′ ceilings
